ALOT and BCP-ALL MRD Databases for acute leukemia research

EuroFlow™ has developed reference databases that allow research studies of samples stained with the EuroFlow panels: ALOT and BCP-ALL MRD following the EuroFlow™ SOPs.

Evaluation of samples with suspicion of acute leukemia (ALOT)

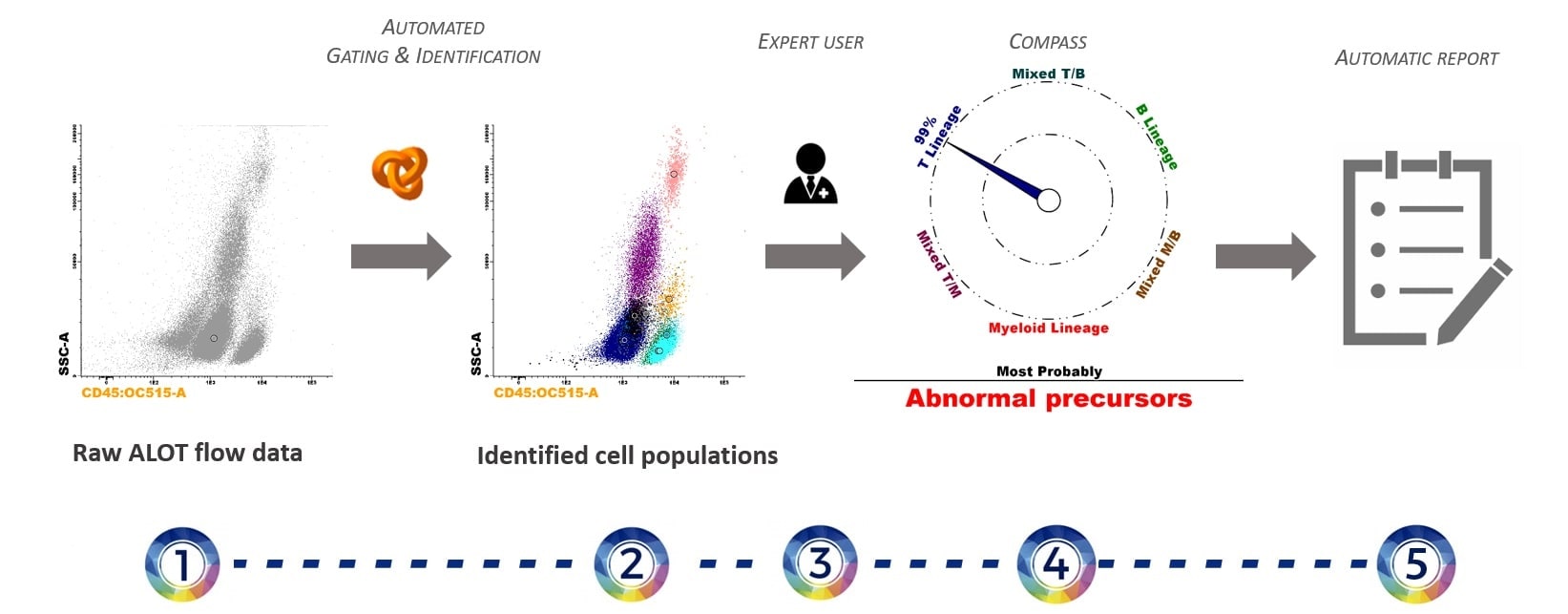

Overview of the general automated analysis process for ALOT samples including AG&I, Compass orientation and Automatic Report as described below:

1. Compatible FCS file
   Acquired using the EuroFlow™ SOPs for instrument set-up, sample preparation and antibody panel.
2. Clustering
   All events are automatically identified by clustering algorithms.
3. Identification with EuroFlow™ Databases (AG&I)
   Infinicyt™ automatically compares the clusters with the EuroFlow™ Database:
   – Clusters identified as normal cell populations included in the database are directly renamed with the name of those populations.
   – Clusters that are not identified as normal cell populations included in the database are assigned to Check Populations. The user has to review them and decide whether they are normal or abnormal.
4. Comparison of the abnormal population(s) identified with a reference database (Compass Classification Tool)
   Once the population out of normal is identified, the software automatically performs a comparison (using the Compass tool) with a reference database containing abnormal (B, T and Myeloid) leukemic cells.
5. Automatic Report includes (click here to see an example):
   – Frequency of each population with reference ranges.
   – Relevant information on the analysis automatically updated for each sample.
   – Available in 13 different languages.

1. Automated Gating and Identification (AG&I) ⁽¹⁾

Infinicyt™ Automated Gating and Identification tool provides a complete analysis of a given sample. For Acute Leukemia research, two separate databases are used: one ALOT Database for peripheral blood samples and another ALOT Database for bone marrow samples. All cell populations present in the sample are compared with the normal reference database and classified either as normal, or as a Check Population that has to be reviewed by the expert.

How was the AG&I ALOT reference Database built?

2. ALOT Classification Database ⁽²⁾

Once the abnormal blast population is identified, the software automatically performs a comparison using the Infinicyt™ Compass tool, with a reference Classification Database containing abnormal (B, T and Myeloid) leukemic cells.

This database uses the Compass tool and compares the abnormal precursors with the database groups containing B-ALL, T-ALL and AML abnormal blast populations, independent of sample type (bone marrow or peripheral blood).

How was the ALOT Compass Classification Database built?

This database contains specimens collected at different EuroFlow™ centers and analyzed by flow cytometry experts. All the specimens were merged and reviewed again to discard outliers to finally obtain the specimens that constitute the ALOT Database.

What type of results does the Compass tool point out?

EuroFlow™ Database for MRD B-cell precursor acute lymphoblastic leukemia (BCP-ALL) studies

The EuroFlow™ BCP-ALL MRD Database improves accuracy and reproducibility of the results since the files are compared to a reference database. Numerical and immunophenotypic alerts highlight sample quality and processing, as well as populations that are out of range compared to normal reference data.

How was the BCP-ALL MRD Database built?

EuroFlow™ collected representative bone marrow samples from donors stained with the BCP-ALL MRD panel following the EuroFlow™ SOPs. The samples were collected in different centers to reflect biological and technical variability regarding different laboratories, instruments and operators. EuroFlow™ experts analyzed those normal samples and created a library of reference populations.

How to compare a new case with EuroFlow™ BCP-ALL MRD Database using Infinicyt™ Automated Gating & Identification tool?

1. Compatible FCS file
   Acquired using the EuroFlow™ SOPs for instrument set-up, sample preparation and antibody panel.
2. Clustering
   All events are automatically identified by clustering algorithms.
3. Identification with EuroFlow™ Databases (AG&I)
   Infinicyt™ automatically compares the clusters with the EuroFlow™ Database:
   – Clusters identified as normal cell populations included in the database are directly renamed with the name of those populations.
   – Clusters that are not identified as normal cell populations included in the database are assigned to Check Populations. The user has to review them and decide whether they are normal or abnormal.
4. Automatic Report includes:
   – Frequency of each population with reference ranges.
   – Relevant information on the analysis automatically updated for each sample.
